GC Audio Malcolm Toft Equate X Cartridge

Malcolm is still manufacturing professional audio equipment and in 2008 he was made a visiting professor at Leeds College of Music. In 2023 he was awarded an Honorary Doctor of Science by West London University in recognition of his contribution to the recording industry.

The Malcolm Toft signature GCA Inherit cartridge is a complete producer channel with advanced sound processing features.

EQUATE X Catridge has 3 stages
• A full 75dB mic/line/instrument DI preamp controlled by the host rack.
• An equalizer from Malcolm’s Trident consoles, with numerous improvements, particularly in terms of signal-to-noise ratio:
- HF 8Khz +/-15dB.
- LF 80Hz +/-15dB.
- MLF 100Hz to 1.5Khz +/-15dB
- MHF 1Khz to 15Khz +/-15dB.
- LP Filter 30Hz to 350Hz
- HP Filter 22Khz to 1.5Khz
• A custom saturator with drive / mix setting and two possible colors: A silicium diode bridge mode for a modern, precise, and sharp sound, and a germanium diode bridge mode for a vintage and warmth sound.

This cartridge is the perfect tool for musicians and producers who want a sound with a lot of personality without compromising on audio quality.

From Malcolm TOFT
“I am very pleased to be collaborating with GC Audio in the creation of the ‘Malcolm Toft’ Signature Cartridge.I know that they are meticulous in recreating the sound of the original product and that it will therefore be true to its heritage.The Inherit cartridge Equate X design come from my legacy equalizers with improvements thanks to modern components.
The first stage is a full mic/line/DI preamp controlled by the host rack.The second stage is a 6 bands equalizer with swept high and low pass filters to increase versatility.
This unique system allows a large number of curves.Also, we added an exclusive output saturator stage to bring color and personality to your sound.

I put all my knowledge into designing this product with the support of GC Audio, I really hope this cartridge could help to grace your productions.”

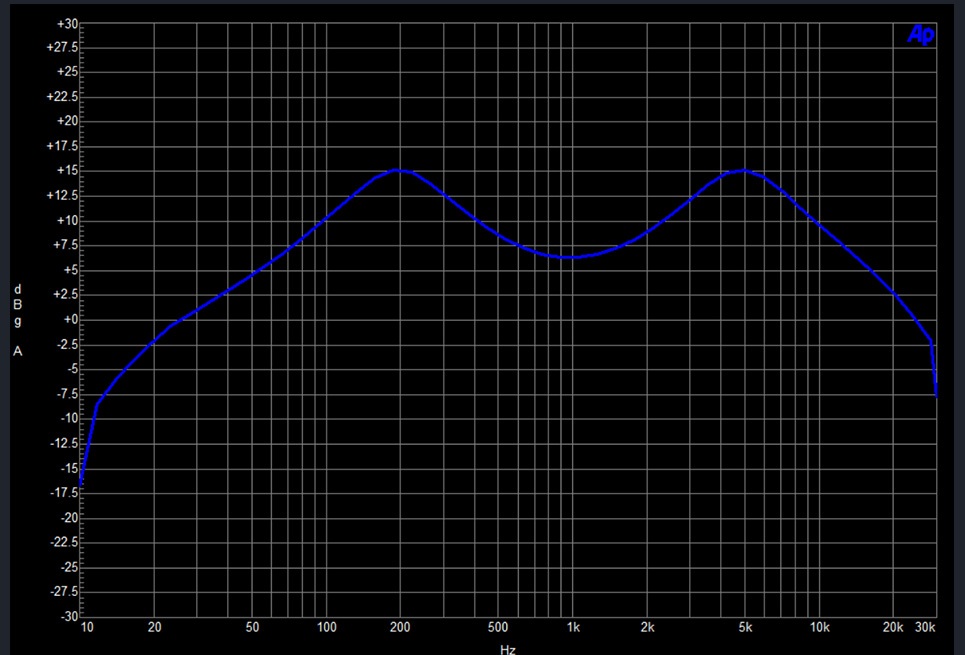

EQ Flat	EQ Medium 200Hz & 5Khz @ +15db
Frequency Germanium VS Silicium @ Gain Max	Low Pass + High Pass full
Noise	Preamp Gain Step

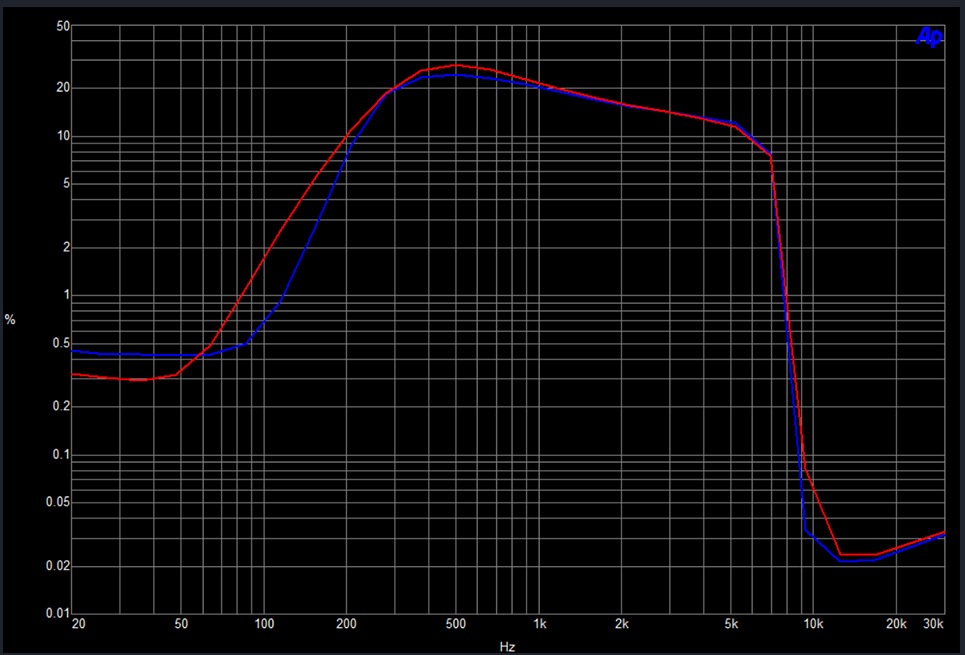

THD Germanium VS Silicium @ Gain Max	THD Peamp 0dBu

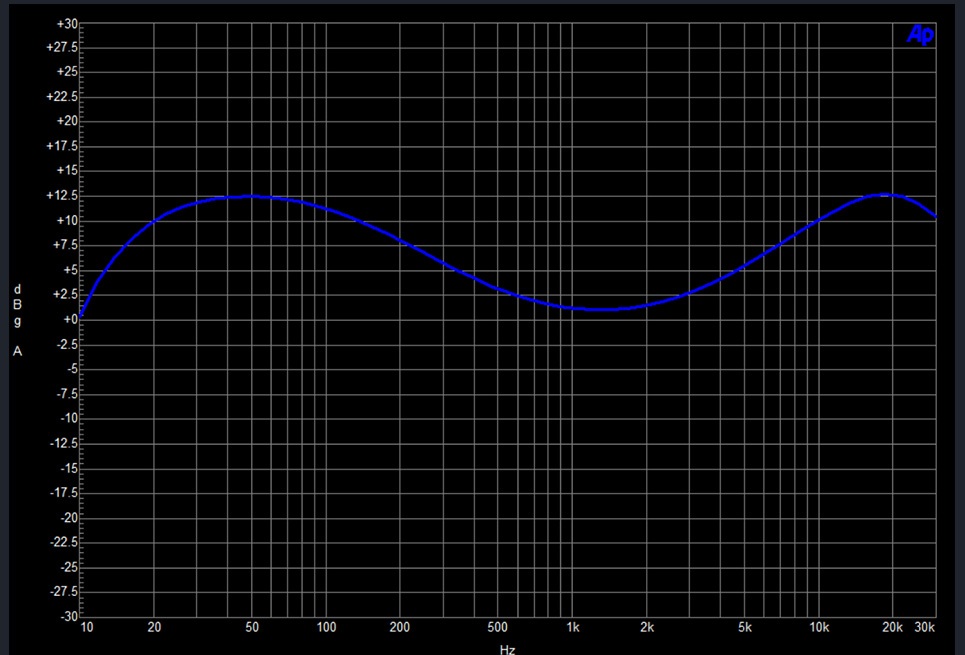

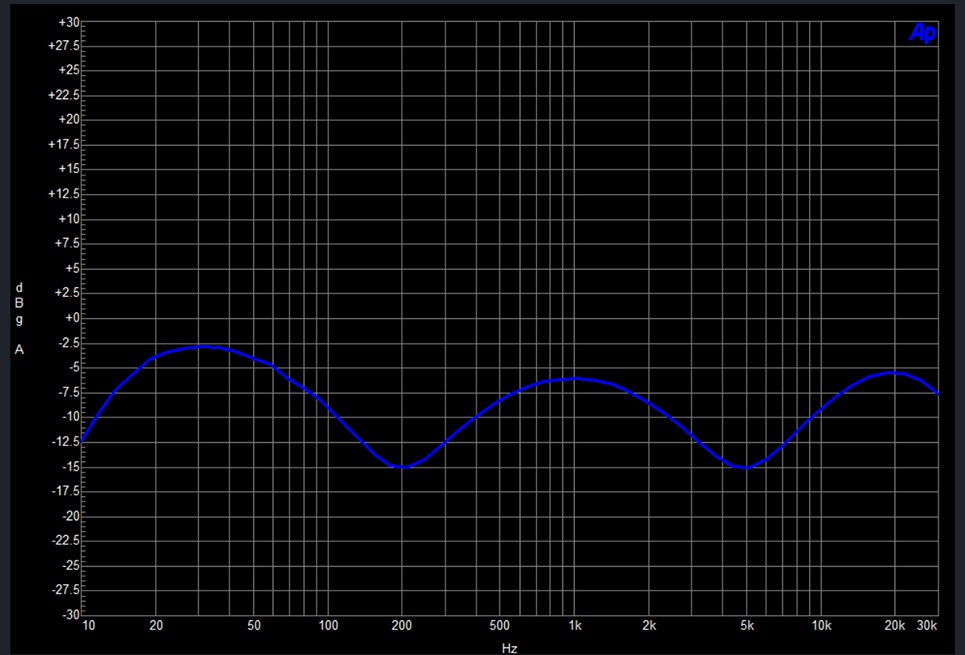

EQ Low + High @ 12.5dB	EQ Medium 200Hz - 5Khz @ -15dB
